Module
Number
Type of ModuleWidthDescription
901VCO/LFO3Voltage Controlled Oscillator, can be used as LFO (Low Frequency Oscillator) or VCO
901AVCO driver1One volt per octave
901BVCO1The original Modular VCO. It makes a very rich sound but is known for it's instability
901CVCO output stageused on earlier modulars (2's and 3's)
901DVCO output stage3
902VCA1(Voltage Controlled Amplifier) 2 signal ins, 2 outs, 3 CV (linear or exponential control voltage) ins
(a brochure for the 902)
903white noise1an older module, used on some of the first systems
903Anoise generator1Called "Random Signal Generator", this unit can output pink or white noise.

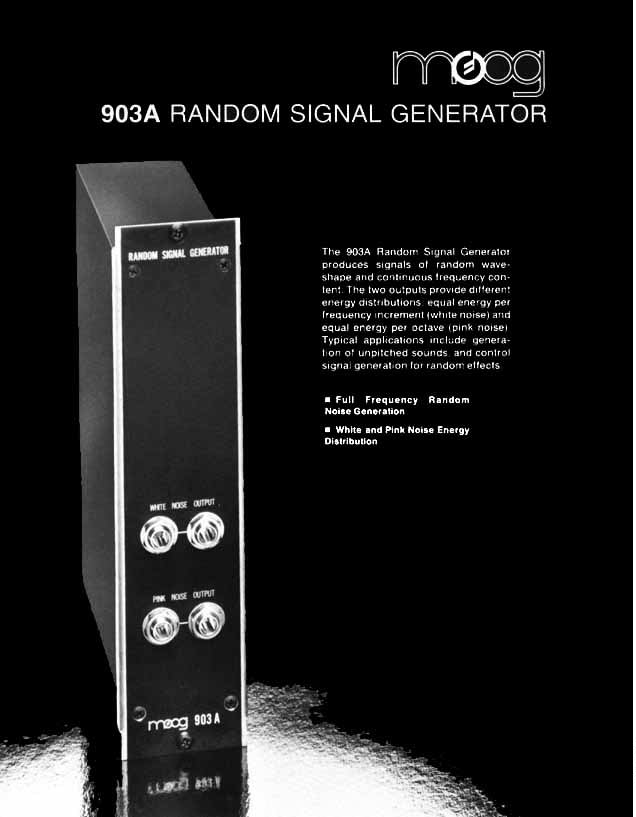

(a brochure for the 903A)
904VCFVoltage Controlled Filter used on some of the first Moog Modulars
904Alow-pass VCF2the famous 24dB-per-octave filter
904Bhigh-pass VCF2
904Cfilter coupler2
905spring reverb2This is a limited but effective spring reverberation unit. It is heard on Keith Emerson's "Trilogy" solos.
907fixed filter bank4This filter bank appears originally on the Moog 10 and Moog 12.
907Afixed filter bank3This filter bank appears originally on the Moog 15 and Moog 35.
909power supplyused on the Moog 15
910power supply2This unit is not full Moog module height. It fits in the bottom of the rack only.
911envelope generator1This is a full ADSR (Attack, Decay, Sustain, Release) envelope generator. Attack, Decay and Release is adjustable from 2ms to 10 seconds.
912envelope follower
914fixed filter bank412-band, 125Hz to 5kHz, with high and lowpass knobs
920power supply
921VCO2Voltage Controlled Oscillator with a range from 1.01Hz to 40kHz

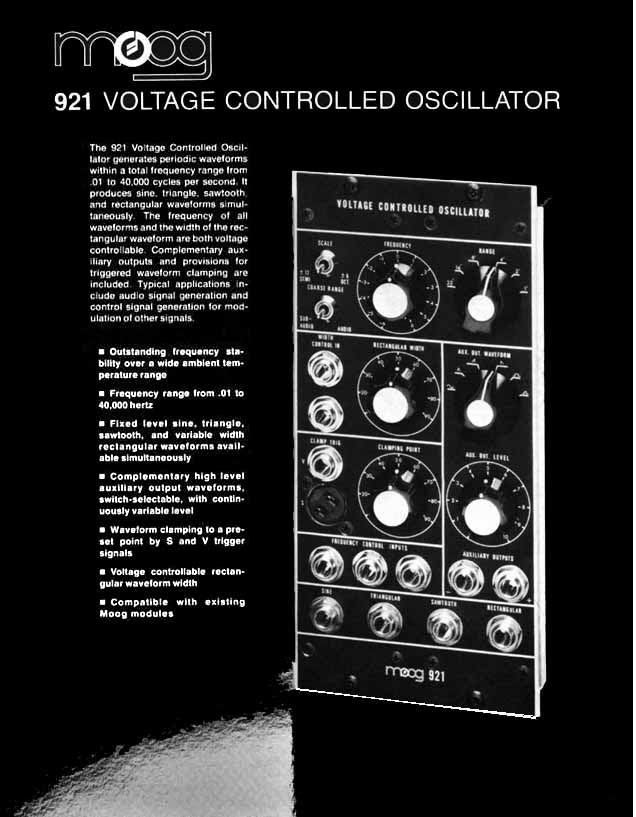

(a brochure for the 921)
921AVCO driver1one volt per octave

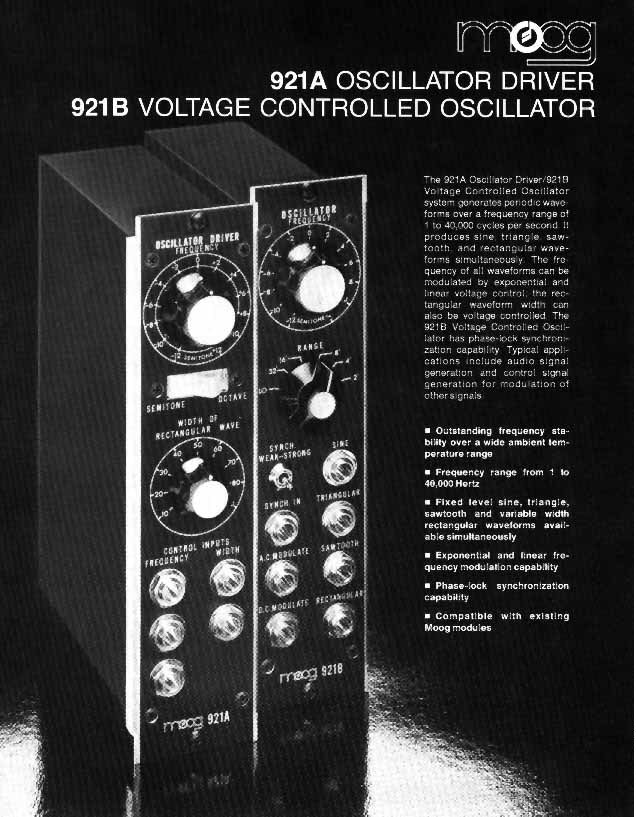

(a brochure for the 921A and 921B)
921BVCO1This oscillator is said to be more stable than the 901B. It has a range of 1Hz to 40kHz.
(a brochure for the 921A and 921B)
923noise, high-pass, and low-pass filter1
928sample-and-holdThis was a separate long, thin box, both versatile and effective.
930power supplyThis was the power supply for the Moog 35 and Moog 55. It was wired to the CP8A power switch.
95049-note keyboard
950A(?) a controller
950Bscale programmerThis was used by Tomita.
95161-note keyboard
95249-note, duophonic keyboard
955ribbon controlleran earlier model of the 956
956ribbon controller
958pedal controllerearly model
959joystick controllerThis is a separate wedge-shaped hand-made rosewood box (beautiful, useful, and desirable)
960sequencer8This is three rows of eight steps, with fully variable voltages.
961sequencer interface3also converts voltage-trigger to S-trigger and vice-versa
961CPsequencer interface paneldesigned for the Moog 55
962sequencer switch1This switch is used to control how sequencer is set up.
9844X4 matrix mixer
991filter and attenuator
992control voltages1illuminated red or blue switches linked to the 904A
993trigger/envelopeilluminated yellow or green switches
994jack multiples1This simple, but very useful, module is for duplicating voltages (to send more than one place).
995attenuators1
1120foot pedal
1125sample-and-hold
1130drum controller
1131percussion controller
1150ribbon controllerThis was a ribbon controller mounted on a long thin box.
1630Bode Frequency ShifterThis module was designed by Harald Bode and sold with Moog's modular systems. It is highly sought-after.
1634pitch-to-voltage converter
6401ring modulator
CP1CV (control voltage) and trigger outputsThis was designed for the Moog 3P.
CP2CV and trigger outputs, and filtersThis unit is not full Moog module height. It fits in the bottom of the rack only.
CP34X1 mixerThis unit is not full Moog module height. It fits in the bottom of the rack only.
CP3AmixerThis unit featured illuminated switches that were linked to the VCO's. This unit is not full Moog module height. It fits in the bottom of the rack only.
CP4CV and trigger outputs, attenuators, etc...This was designed for the Moog 1C.
CP4ACV and trigger outputsThis unit, designed for the Moog 35, is not full Moog module height. It fits in the bottom of the rack only.
CP5CV and trigger outputsThis unit was designed for the "P" series Moog modulars.
CP6CV and trigger outputs, etc...This unit was designed for the "P" series Moog modulars.
CP7CV and trigger outputs, multiples, etc...This unit was designed for the "P" series Moog modulars.
CP8power switch, etc...This unit, designed for the Moog 2C and Moog 3C.
CP8Apower switch, etc...This unit, designed for the Moog 35 and Moog 55.
CP9power switchThis unit, designed for the Moog 3P.
CP11mixer, triggers, outputs, etc...This unit, designed for the Moog 10. It has four-input mixer, multiples, attenuator, 2 control voltage and trigger outs, and two audio outputs.
CP35attenuatorsThis unit, designed for the Moog 35, is not full Moog module height. It fits in the bottom of the rack only.
. . . . .
