Matrix-6R

. . .
. Manufacturer:
Oberheim

Model:
Matrix-6R

Production period:
1986-89?

Quantity produced:


Famous Fingers
Who played this instrument?

.
. . .

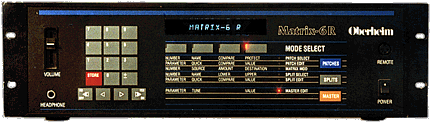

Oberheim Matrix-6R

image courtesy of Atmosfear

The Matrix-6R is basically a rack-mounted Matrix-6 without the keyboard. It featured 6-note polyphony and digital osciallators. Each voice has two DCOs, a VCF, three envelope generators (5 stage: Delay, Attack, Decay, Sustain, Release), two ramp generators (simple envelopes), tracking (not just for the keyboard but for remapping any modulation source), portamento and FM controls, three LFOs, and two VCAs. Along with other "Matrix" products from Oberheim, the Matrix-6R featured what Oberheim called, "Matix Modulation System", which makes for very flexible and powerful modulation programming. With this much programmability it is unfortunate that, like the Matrix-6, the only user interface is a single slider and a keypad. However the Matrix-6R does give you 6 individual LEDs that light up for each voice that is played. It also features MIDI mono mode where each voice has its own MIDI channel (very useful for guitar controllers).

[from The A-Z of Analogue Synthesizers , by Peter Forrest, published by Susurreal Publishing, Devon, England, copyright 1994 Peter Forrest]



Famous Fingers
Who Played This Instrument?

Larry Fast, Larry Heard, OMD, Sparks, Mel Wesson

[Let us know if you have any further additions to this list.]

. . . . .
