Moog Liberation

. . .
. Manufacturer:
Moog

Model:
Moog Liberation

Production period:
1980-84

Quantity produced:


Also:

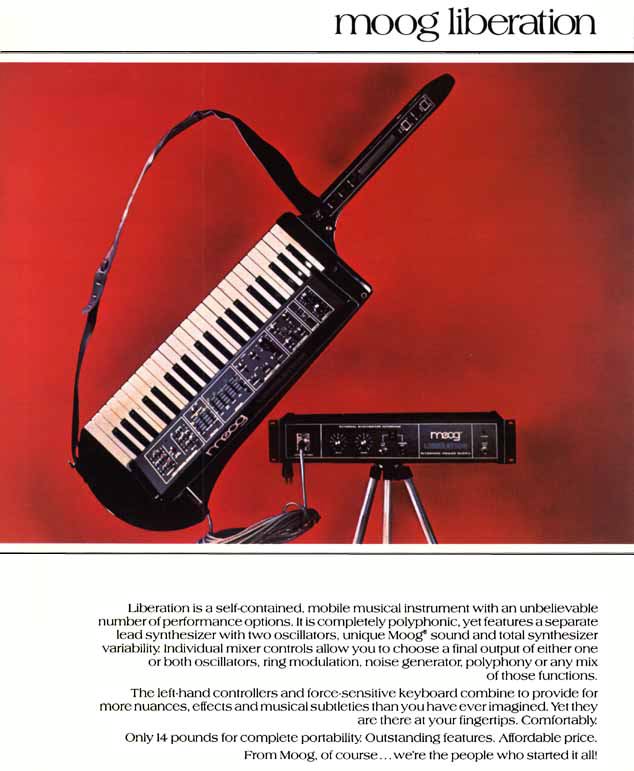

- Moog Liberation brochure courtesy of Kevin Lightner and Jay Williston's Moog Liberation

Famous Fingers
Who played this instrument?

.
. . .

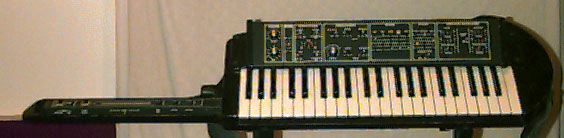

above photo from the collection of Joseph Rivers, Audio Playground, Orlando, FL

The Liberation is a 2-VCO monophonic synth with a polyphonic section that can play simple organ-type sounds. Its keyboard is aftertouch-sensitive and on its neck it has control wheels for filter cutoff (spring loaded), modulation and volume, as well as a pitch ribbon. VCO1 is switchable between triangle, sawtooth, and pulse wave. VCO2 has triangle, sawtooth, and square waves and can be synced to VCO1. Both oscillators can be switched over a 3-octave range. However, VCO2's range is an octave higher than VCO1's. The Liberation has a single VCF and 2 ADS envelopes: one for the VCF and one for the VCA. There is a 40-foot cable that connects the Liberation to its rackmounted other half which houses its power supply and cv/trigger output sockets.

[from The A-Z of Analogue Synthesizers, by Peter Forrest, published by Susurreal Publishing, Devon, England, copyright 1994 Peter Forrest]



Famous Fingers
Who Played This Instrument?

Didier Marouani of Space, Tom Coster of Santana, Tommy Cyborg of Chrome, Devo, Damon Edge of Chrome, Roy Goudie, Herbie Hancock, Joy Electric, J-M Jarre, Mark Jenkins, Bryce Kushnier of The Fancy Few - know across Canada as the Moog-King of the Cold Country, Light of the World, John Malloy, The Moog Cookbook, Danny Peyronel of British band UFO, Saga, Tom Schuman, Six Finger Satellite, Stereolab

[Let us know if you have any further additions to this list.]

. . . . .
