SH-9

. . .
. Manufacturer:
Roland

Model:
SH-9

Production period:
1980-82

Quantity produced:


Famous Fingers
Who played this instrument?

.
. . .

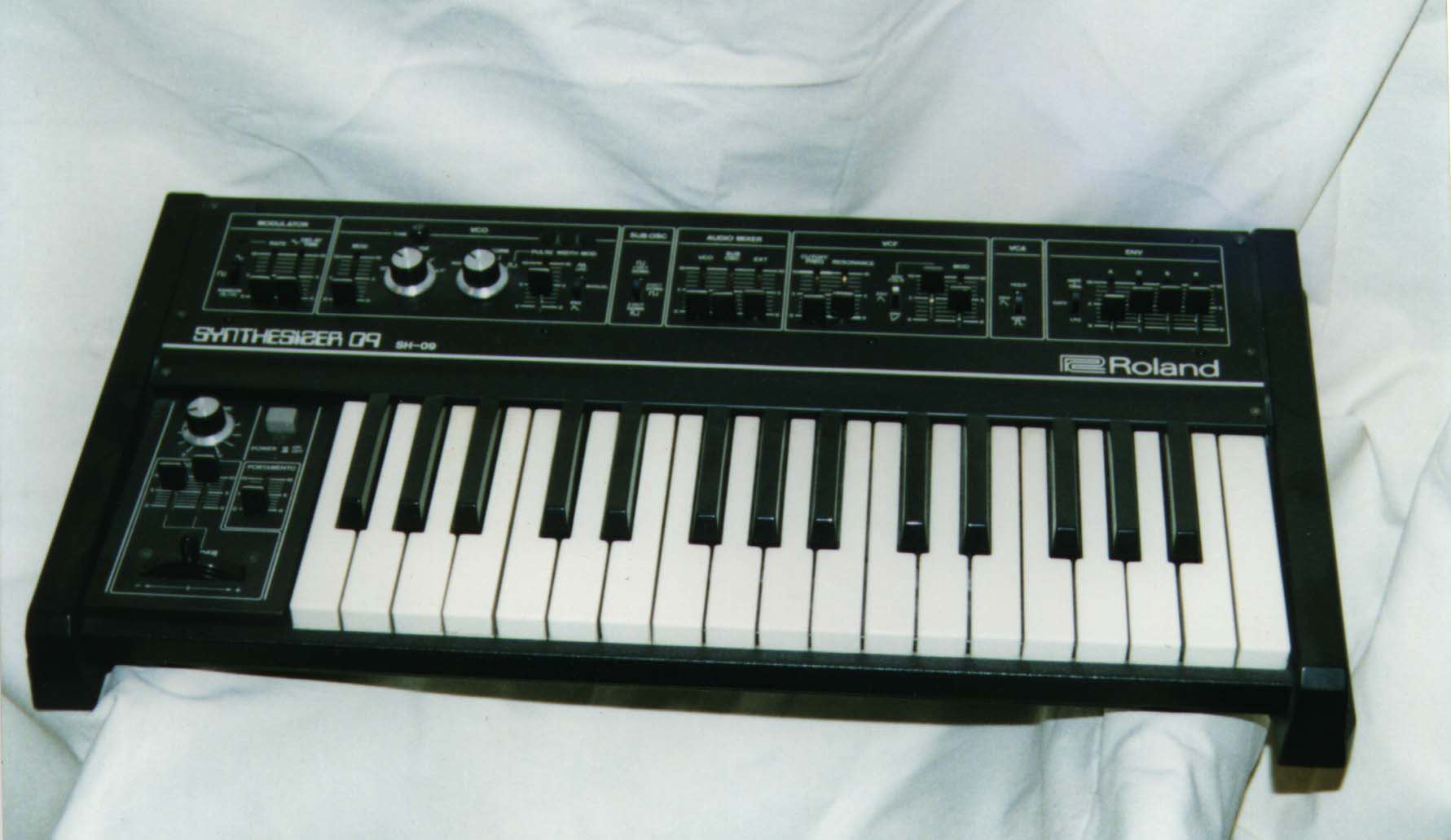

Roland SH-9

owner: Daniele Marziali

The SH-09 (or Synthesizer-09) is a single VCO monophonic analog synthesizer with a 2 1/2 octave, 32-note (F-C) keyboard. The VCO is switchable between 5 octaves: 2', 4', 8', 16', 32'. Available waveforms are sawtooth, square, pulse (with pulse width modulation), or white noise. There is also a sub-oscillator switchable between a square wave one octave down, a square wave two octaves down, and a pulse wave three octaves down. It is possible select the noise source at your oscillator and still have the sub-oscillator as a waveform. The VCF is self oscillating and can be modulated by the envelope follower which is wired to the external input. The envelope generator is an ADSR (attack decay sustain release) with a slider for each stage. On the control panel to the left of the keyboard is a horizontal pitch-bend/modulation lever, with pressure up and down controlling modulation amount. There are also two sliders controlling amount of modulation routed to the VCO and VCF, as well as a slider adjusting portamento amount and the main power switch. On the back panel there is a main output, and the CV/gate inputs and outputs.

[information from The A-Z of Analogue Synthesizers, by Peter Forrest, published by Susurreal Publishing, Devon, England, copyright 1994 Peter Forrest]



Famous Fingers
Who Played This Instrument?

808 State, Barney Arthur, Banco da Gaia, Boris Blank, Cabaret Voltaire, Vince Clarke, D.A.V.E., DDR, The Drummer, Electronic Dream Planet, Eurythmics - "Aqua", on "Touch" and "Love You Like A Ball And Chain", Baby Ford, Sophie and Peter Johnston, Michael Law, Adrian Lee, Chris Liberator, Guy McAffer, Mushroom of Massive Attack, "Professor Small", Salvator Mulligan, Motiv8, Oceanic, OMD - bass on "Enola Gay", Orbital, Panic On The Titianic, Planet 4 Records, Pulp, Rowland The Bastard, Sabres of Paradise, Tangerine Dream, Mark Tyler, Adrian Utley

[Let us know if you have any further additions to this list.]

. . . . .
