Matrix-6

. . .
. Manufacturer:
Oberheim

Model:
Matrix-6

Production period:
1985-89?

Quantity produced:


Famous Fingers
Who played this instrument?

.
. . .

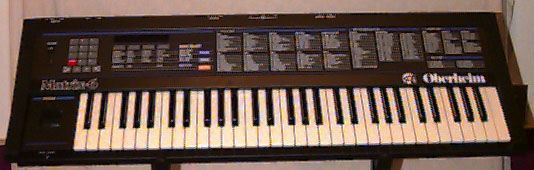

Oberheim Matrix-6

above photo from the collection of Joseph Rivers, Audio Playground, Orlando, FL

other synths in the Audio Playground Collection

This synthesizer was based on the popular Matrix line. The Matrix-6 is basically a stripped down Xpander with a 5-octave, 31-note (C-C) keyboard, which features on and off velocity, as well as channel aftertouch. It features 6-note polyphony and pitch and modulation levers (not wheels) to the left of the keyboard. Each voice has two DCOs (as opposed to the Xpander's VCO), a VCF, three envelope generators (5 stage: Delay, Attack, Decay, Sustain, Release), two ramp generators (simple envelopes), tracking (not just for the keyboard but for remapping any modulation source), portamento and FM controls, three LFOs, and two VCAs. Along with other "Matrix" products from Oberheim, the Matrix-6 features what Oberheim called, "Matix Modulation System", which makes for very flexible and powerful modulation programming. With this much programmability it is unfortunate that the only user interface is a single slider and a keypad.

[from The A-Z of Analogue Synthesizers , by Peter Forrest, published by Susurreal Publishing, Devon, England, copyright 1994 Peter Forrest]



Famous Fingers
Who Played This Instrument?

Apoptygma Berzerk, Jane Child, Dan Donovan, Gravity Kills, Leatherstrip, Philip Glass Ensemble, Sunscream, Yamo

[Let us know if you have any further additions to this list.]

. . . . .
